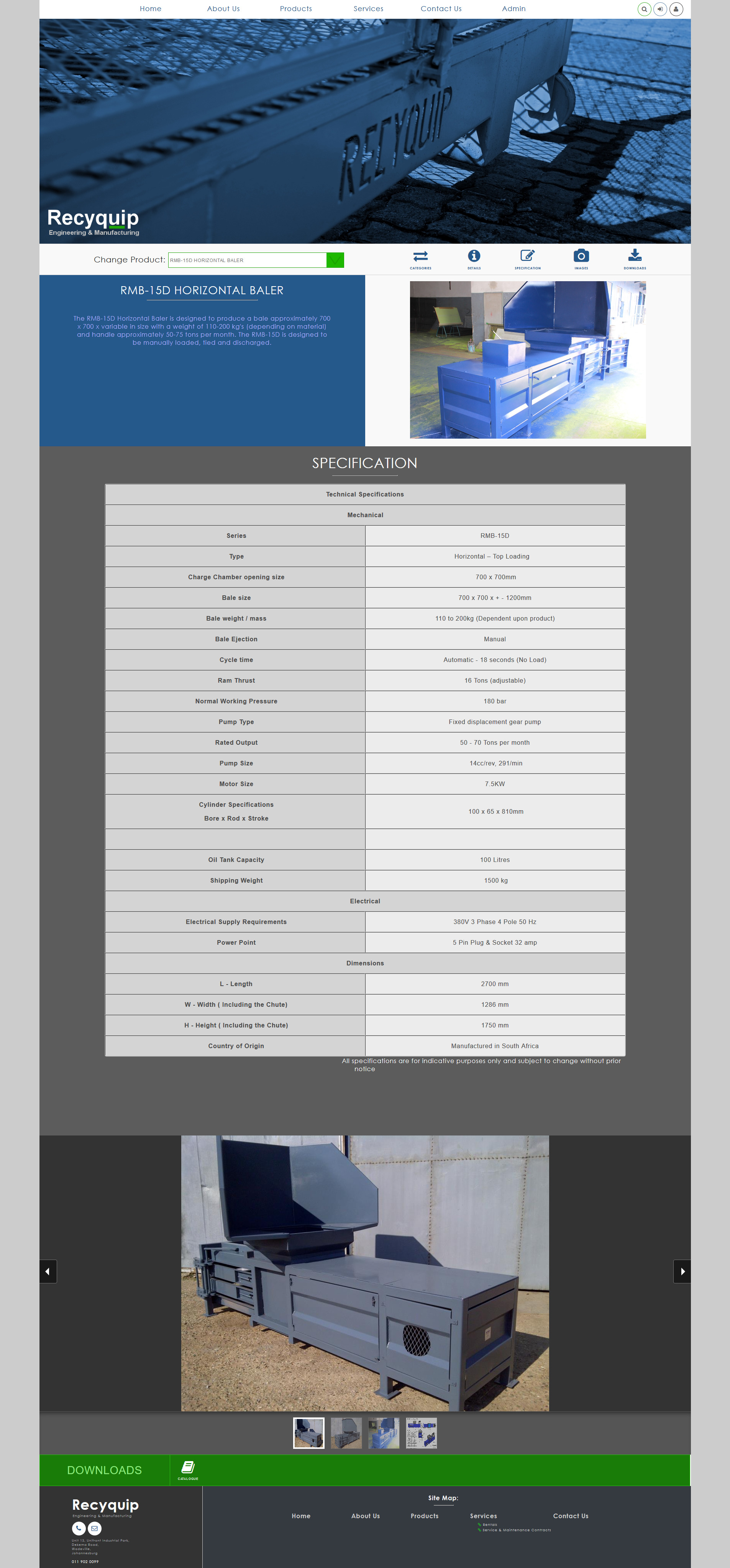

RMB-15D HORIZONTAL BALER
The RMB-15D Horizontal Baler is designed to produce a bale approximately 700 x 700 x variable in size with a weight of 110-200 kg's (depending on material) and handle approximately 50-75 tons per month. The RMB-15D is designed to be manually loaded, tied and discharged.
SPECIFICATION
|
Technical Specifications |
|
|
Mechanical |
|
|
Series |
RMB-15D |
|
Type |
Horizontal – Top Loading |
|
Charge Chamber opening size |
700 x 700mm |
|
Bale size |
700 x 700 x + - 1200mm |
|
Bale weight / mass |
110 to 200kg (Dependent upon product) |
|
Bale Ejection |
Manual |
|
Cycle time |
Automatic - 18 seconds (No Load) |
|
Ram Thrust |
16 Tons (adjustable) |
|
Normal Working Pressure |
180 bar |
|
Pump Type |
Fixed displacement gear pump |
|
Rated Output |
50 - 70 Tons per month |
|
Pump Size |
14cc/rev, 291/min |
|
Motor Size |
7.5KW |
|
Cylinder Specifications Bore x Rod x Stroke |
100 x 65 x 810mm |
|
|
|
|
Oil Tank Capacity |
100 Litres |
|
Shipping Weight |
Approx. 1500 kg |
|
Electrical |
|
|
Electrical Supply Requirements |
380V 3 Phase 4 Pole 50 Hz |
|
Power Point |
5 Pin Plug & Socket 32 amp |
|
Dimensions |
|
|
L - Length |
2700 mm |
|
W - Width ( Including the Chute) |
1286 mm |
|
H - Height ( Including the Chute) |
1750 mm |
|
Country of Origin |
Manufactured in South Africa |
